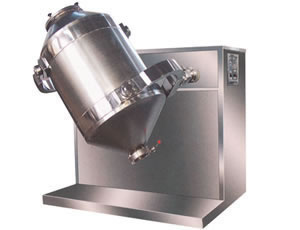

3-Dimensional Motion Mixer

Home ? Products ? Mixing Equipment ? 3-Dimensional Motion Mixer

Features
The 3-dimensional motion mixer is a high efficiency mixer, widely used in the pharmaceutical, foodstuff, and chemical industries, for mixing powder/granule materials. It does not use centrifugal action, thus avoids any layering or agglomeration during mixing. It is able to reach a uniform mixing effect, with a mixing rate above 99%. With a high load factor of 80%, while that of normal mixer's is 40%, the 3-dimensional motion mixer is an ideal model for mixing, with a short mixing time. It offers a compact structure, and the stepless speed regulating transmission (adjusts speed by inverter or electromagnet), makes its operation very convenient. Each part of the chamber has an ARC transition and is polished precisely, and thus meets the GMP requirements.

Working principle of the 3-Dimensional Motion Mixer
The 3-dimensional motion mixer mixing barrel is suspend, fixed on the ends of driving and driven axles through two Y type gimbals, which is crossing and vertical to each other space. When the driving axle is forced to rotate, the gimbals make the barrel perform the translational, turning and rolling movement in space. This causes the materials to perform 3-dimensional motion inside the barrel. Thus, the three-dimensional motion mixer mixing barrel causes different kinds of materials inside the barrel to flow, spread, and intermingle with each other and finally form a new, uniform material.

Technical Parameter of the 3-Dimensional Motion Mixer

Specification		15	50	100	200	400	600	800	1000	1200	1500
Barrel volume(L)		15	50	100	200	400	600	800	1000	1200	1500
Load volume(L)		12	40	80	160	320	480	640	800	960	1200
Max load weight(kg)		6	20	40	80	160	240	320	400	480	600
Rotate speed(r/min)		0-28		0-8
Motor power(kW)		0.37	1.1	1.5	2.2	4	5.5	7.5	7.5	11	11
Overall Size (mm)	L	750	1400	1700	1800	2100	2400	2600	2650	2950	3100
	W1	1000	1000	1200	1400	1800	2200	2380	2500	2650	2850
	H	700	1200	1500	1600	1950	2350	2500	2600	2750	3000
	W2	650	850	1250	1350	1650	1750	2000	2100	2200	2250
Total weight(kg)		200	300	500	800	1200	1500	2000	2500	3000	3500

We are a 3-dimensional motion mixer manufacturer based in China. We provide a vast range of products, including V model mixer, belt drying equipment, circle vibrate sieve, fine grinding machine, and others.
